Deploying Backend Code

Overview

The Dune Weaver project supports two deployment modes for backend code: Docker and Python script. Docker deployment is recommended for supported devices with 64-bit operating systems.

Supported Devices

  • Raspberry Pi 3B, 4, 5
  • Raspberry Pi Zero 2W
  • Any PC/Mac (Python script only)

Raspberry Pi Setup

Initial Configuration

Users should employ the Raspberry Pi Imager to install the 64-bit OS. Key setup steps include:

  • Selecting appropriate hardware and SD card
  • Enabling SSH during advanced configuration
  • Configuring Wi-Fi credentials
  • Disabling WLAN Power Save via raspi-config
  • Running system updates (sudo apt update and sudo apt full-upgrade)

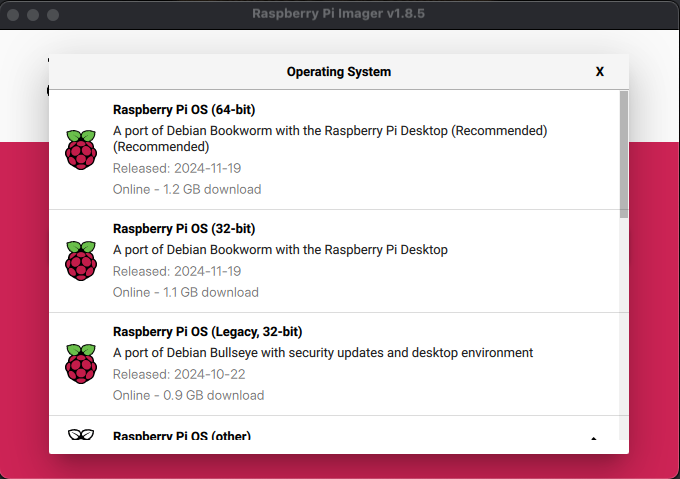

Raspberry Pi Imager Setup

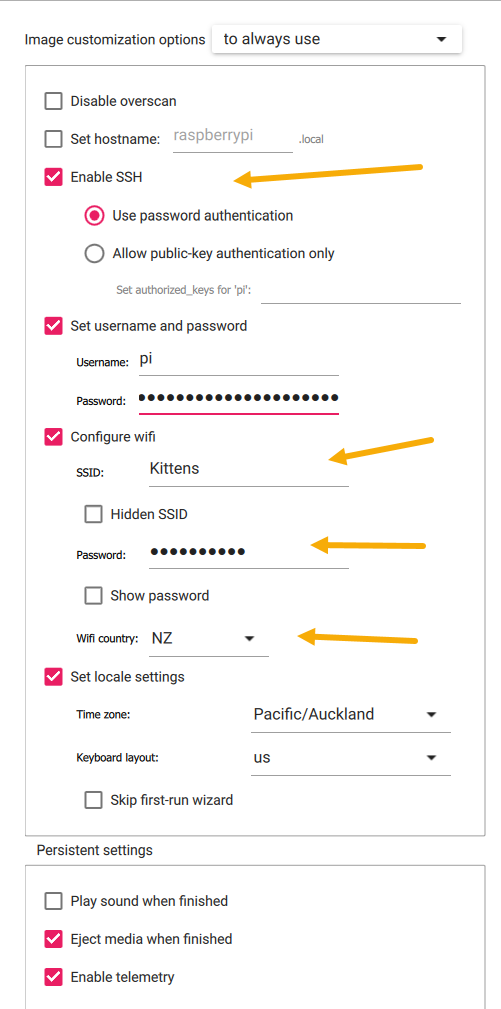

Advanced Options Configuration

SSH Access

Connect remotely using: ssh pi@raspberrypi.local

Docker Deployment

Installation

Execute these commands to install Docker:

curl -fsSL https://get.docker.com -o get-docker.sh
sudo sh get-docker.sh

Add user to Docker group to eliminate sudo requirement:

sudo usermod -aG docker $USER

Deployment via Docker Compose

Clone the repository and deploy:

git clone https://github.com/tuanchris/dune-weaver --single-branch
cd dune-weaver
docker compose up -d

Access the interface at <raspberrypi_ip_address>:8080

Python Script Deployment

Manual Execution

For devices without Docker support:

git clone https://github.com/tuanchris/dune-weaver --single-branch
cd dune-weaver
python3 -m venv .venv
source .venv/bin/activate
pip install -r requirements.txt
python main.py

Systemd Service (Linux)

Create /etc/systemd/system/dune-weaver.service with appropriate paths, then:

sudo systemctl daemon-reload
sudo systemctl enable dune-weaver
sudo systemctl start dune-weaver

Windows Execution

Activate the virtual environment using .venv\Scripts\activate.bat and install from requirements-nonrpi.txt

Web Interface Access

  • Local computer: localhost:8080
  • Raspberry Pi: raspberrypi.local:8080 or <ip_address>:8080

UART Configuration

Modify /boot/firmware/config.txt with specific overlays and run raspi-config Interface Options → Serial Port settings.

Critical requirement: Establish shared ground connection between Raspberry Pi and DLC32 device.

Troubleshooting

Check Docker logs using: docker compose logs -f

For additional support, visit the Discord community linked in the documentation.
